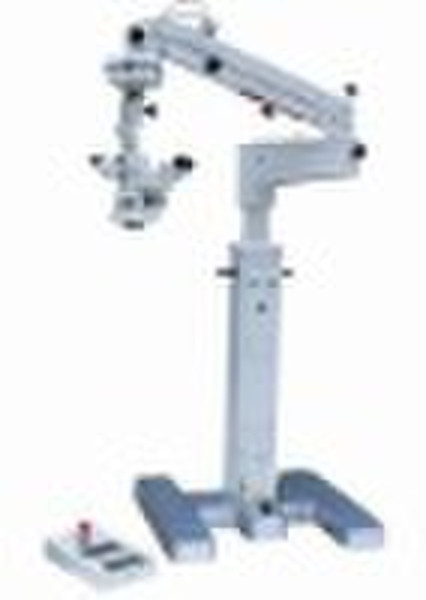

ASOM-4/C Operating Microscope
Albert Lee
Contact person
Basic Information
| Brand Name | CORDER |
|---|---|
| Model Number | ASOM-4/C |
| Place of Origin | China (Mainland) |
operation microscope's specification Eyepieces magnification 12.5x, pupil distance adjustable range 55mm 75mm, diopter adjustment range +6D -6D. Focus of second object lens 160mm Binocular tube 30° 90°variable angle binocular tube Zoom type 6:1 zoom, motorized, magnification 4.5x 27.3x; field of view Φ44 Φ7.7mm Coaxial assistants binocular tube manual 3-step changer, total magnification 6.8x,11.4x,18.2x; field of view Φ34mm,Φ20mm,Φ13mm Coaxial illumination illumination diameter of light spot Φ50mm, illumination intensity 100000lux Objectives f200mm (300mm, 350mm etc ) Focusing motorized, range +/-25mm, speed 33s/whole distance X-Y translator move in X-Y direction motorised, range +/-30mm Maximum length of arm 1200mm New stand swing angle of the carrier arm 0 300°,height from objective to floor 800mm<H<1250mm Foot switch waterproof, 8 function steps Weight 164kg
Delivery terms and packaging
Packaging Detail: Four cartons within special protective foam. size:885x860x195mm,890x640x250mm,1020x260x297mm; weight:78kg+41kg+31kg+14kg Delivery Detail: 15 working days after the moment we receive the payment
Payment term
Telegraphic transfer
-
