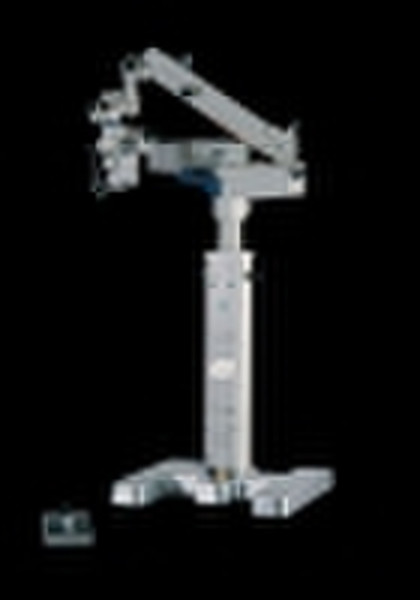

ASOM-5B operation microscope

SpecificationEyepieces magnification 12.5x, pupil distance adjustable range 55mm 75mm, diopter adjustment range +6D -6D. Focus of second object lens 180mm. Binocular tube 30° 90°variable angle binocular tube, add new pupil distance adjustment Magnification 6:1 zoom, motorized, magnification 3x 16x; field of view Φ74 Φ12mm Coaxial assistants binocular tube all direction circumvolve freely, magnification 3x 16x; field of view Φ74 Φ12mm Coaxial illumination illumination diameter of light spot Φ78mm, illumination intensity 100000lux Objectives f300mm (200mm, 250mm,350mm,400mm etc ) Focusing motorized, range +/-25mm, speed 33s/whole distance X-Y swing The head can swing in X direction +/-45 °motorised, and in Y direction +90°,and can stop in any angle Maximum length of arm 1200mm New stand swing angle of the carrier arm 0 300°,height from objective to floor 800mm<H<1250 Foot switch waterproof, 8 function steps Weight 164kg
