Operating Microscope

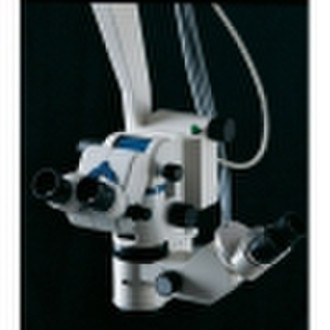

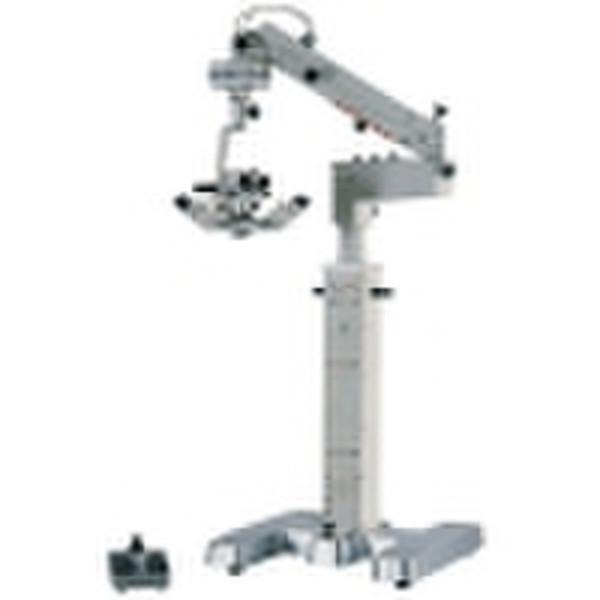

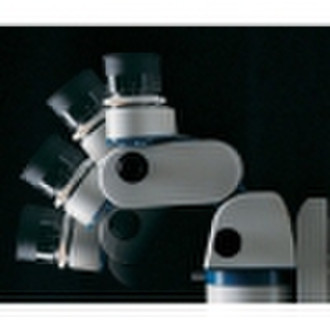

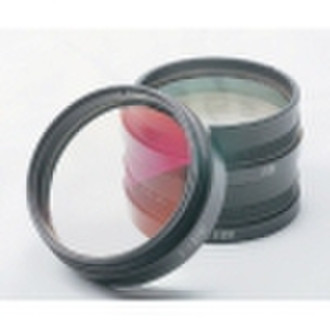

operating microscopeSpecification Operating microscope has double assistants binocular, new changing diaphragm give you perfect depth of field.This model is the bestmodel of our company at present,but the price only the 1/6 ofthe analogousproduct which made by German. Eyepieces magnification 12.5×, pupil distance adjustable range 55mm 75mm, diopter adjustment range +6D -6D. Focus of second object lens 180mm. Binocular tube 30° 90°variable angle binocular tube, add new pupil distance adjustment Magnification 6:1 zoom,motorised,manually adjustable,magnification 4.5× 30×; field of view Φ45 Φ7.5mm Coaxial assistants binocular tube manual 3-step changer, total magnification 6.4×,10.8×,17.3×; field of view Φ31mm,Φ19mm, Φ12mm Coaxial illumination illumination range Φ50mm, illumination intensity 100000lux Objectives f 200mm (175mm,250mm,300mm,350mm,400mm etc ) Focusing motorized, range ±25mm, speed 33s/whole distance X-Y translator move in X-Y direction automatic, range ±30mm Maximum length of arm 1200mm Stand swing angle of the carrier arm 0 300°,height from objective to floor 800mm≤H≤1250 Foot switch waterproof, 8 function steps Weight 160kg
